Products Description

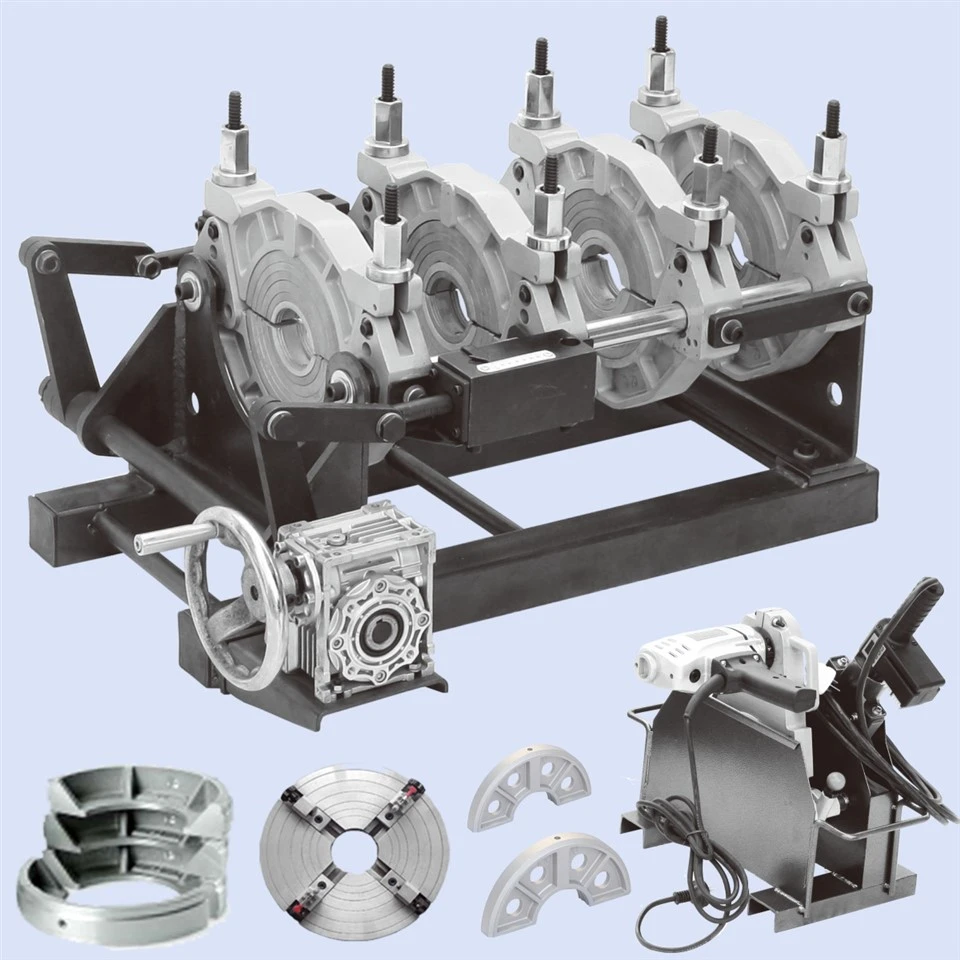

200 Manual Butt Welding Machine: Compact, portable, suitable for on-site welding machine workers. Ensure high-quality, stable welds for small-to-medium pipe diameters, in compliance with strict industry standards for plastic pipe welding.
Our field welding equipment serves PE, PP, PVDF, PPH plastic pipes, ideal for water supply, gas, petroleum, nuclear power, marine aquaculture, ship pipelines.
Professional welding machine designed to last for years.
Products Features
Highly functional design, machine consists of clamp (body), hydraulic controller, trimmer, heater, holder (for holding trimmer and heater), and optional accessories.
Heater features independent temperature control, and PTFE surface coating.
Heating control with precision and stable electronic temperature control device.
Electric heater can lock automatically, safer and more reliable.
Operation
Use rollers or brackets to level the pipe, adjust the concentricity, use fixtures to correct the pipe's out-of-roundness, and leave sufficient welding distance.
Mill the welding surface to a sufficient thickness to ensure the welding section is smooth and parallel, and guarantee that the gap between the mating end faces is less than 0.3mm. The misalignment is less than 10% of the wall thickness at the welding point. Re-milling is necessary when re-clamping.
Place the heating plate. Under the condition of ensuring that the heating plate is closely attached to the welding end face, start the heat absorption timer.
Switching butt welding: Within the specified time, open the heating plate, immediately fit the welding surface, and quickly increase the pressure to the welding pressure. High-pressure collision is strictly prohibited.
Disassemble the pipe components. After the cooling time is reached, reduce the pressure to zero and disassemble the welded pipe components.
Products Advantages
- Easy to operate and get started: No complex training is required. By manually adjusting the clamping, alignment and welding processes, ordinary workers can quickly master it. It is suitable for small-scale projects or on-site emergency repair scenarios, lowering the threshold of human skills.;
- Portable, flexible and highly adaptable: The body is compact and lightweight, weighing only one-third of large equipment. It can be easily moved to narrow Spaces, floors or remote construction sites, and is perfectly compatible with 200mm diameter PE/PPR and other plastic pipes without the need for additional adaptation tools;
- High cost performance and strong practicality: The structure is simple and durable, with low maintenance costs and no complex electronic components, resulting in a low failure rate;
- The welding accuracy meets the standards of medium and small-sized projects, and the fusion strength reaches over 90% of the base material. It is a cost-effective choice for projects with limited budgets.
Products Application
Pipe diameter adaptation: Mainly small and medium-sized pipe diameters ranging from DN20 to DN315, to meet the connection requirements of non-large pipe networks;
Environmental adaptation: Scenarios where large equipment cannot cover, such as those without power supply, narrow Spaces, and scattered construction sites;
Demand matching: Emergency repair, short-term projects, small-scale engineering, pursuing high cost performance and operational convenience.
Comparison of product parameters
| Products name | Manual Butt Welding Machine | Products model |
SKC-B200M |
| Applied materials | PE,PP,PVD,PVDF | Biggest cut pipe diameter | DN63-200mm |
| Insulation resistance to ground | >1MΩ | Total power | 2.9KW |
| Working voltage |
230V±10 ％ ,50Hz Special voltage can be customized) |
Maximum temperature resistance of heating plate surface coating |
<300℃ |
| Cutting Angle error | ≤1° | Applicable environmental temperature | -5～45℃ |
| Total Weight | 54Kg |
Company Overview
SAEMIN With over 30 years of expertise, SAEMIN has become a global leader in PE pipe fusion equipment manufacturing. Our product range includes field butt fusion machines, multi-angle workshop welders, electrofusion units, specialty welding machines, and cutting systems, fully supporting PE, PP, PVDF, PPH, and more. Our solutions are widely applied in water, gas, oil, nuclear power, marine aquaculture, and shipbuilding industries. Guided by SKC: Smart, Knowledgeable, Consistent – Every Weld, Every Time, we remain dedicated to delivering high-quality welding solutions worldwide.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. We are locate at wuxi city,Jiangsu province,near shanghai.
Q: How long is your delivery time?
A: Generally it is 5~10 days if the goods are in stock. Or it is 30 ~40 days if the goods are not in stock, it is according to quantity.
