Parameters
|
Name |
Full Automatic Welded Pipe Machine |
|
Applied materials |
PE, PP ,PVDF |
|
Welding range |
DN160-315mm |
|
Applicable environmental temperature |
-5～60℃ |
|
Storage temperature |
-10 to 70℃ |
|
Automatic Controller Parameter |
|
|
Input voltage |
ACI70 to 250V |
|
Storage temperature |
-10 to 70℃ |
|
Working temperature |
0 to 60℃ |
|
Maximum pressure |
0 to 150Kgf/cm2 |
|
Measurement |
480(W)X325(D)X437(H) |
|
Weight |
32Kg |
|
Power |
3.9Kw (Including heater and facer) |
As we all know the automatic machine is much easier to use than the manual or hydraulic machine.

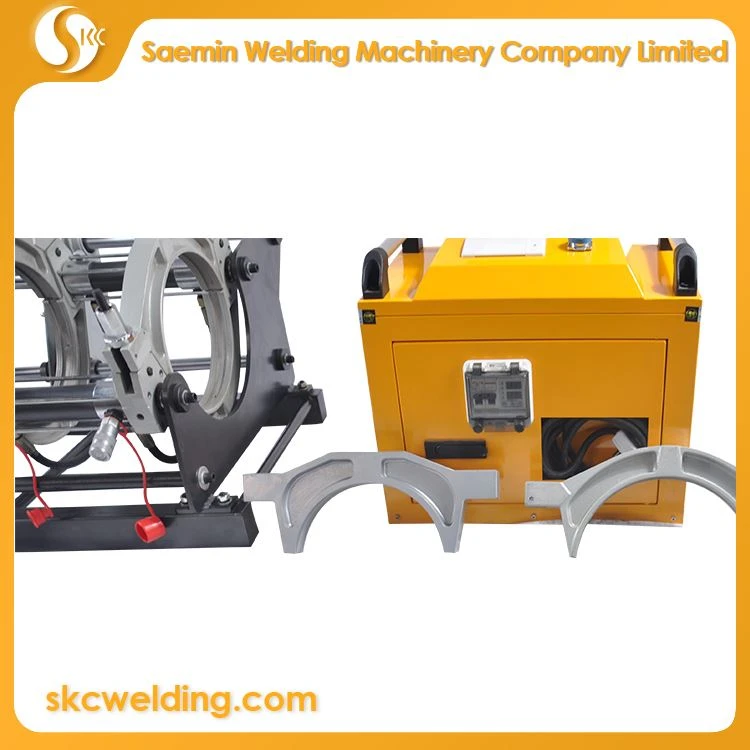

Saemin automatic butt fusion machine
Features:
Features

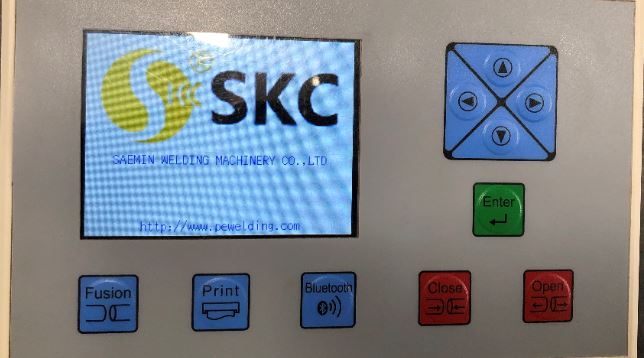

1.You can check and review fusion process data on screen before printing;
2.The built-in printer can print and check fusion data;
3.Printer can print the following data: dates, external temperature, heating temperature, on-site data, tensile pressure, fusion pressure, pipe material specification, fusion results, cooling time etc. Those parameters that can be used to confirm the fusion process.
4.This machine has been certified by South Korea Gas Safety Association.
5.Bluetooth
Once connected with the hand phone, you can operate the machine through handphone.
Remote control through Bluetooth. We can do machine reparation through Remotely from a long distance.
GPS coordinators are shown on the screen.
Printer can be installed either internally or externally through a USB port.
8.Light and compact design
9. English and Chinese Interface

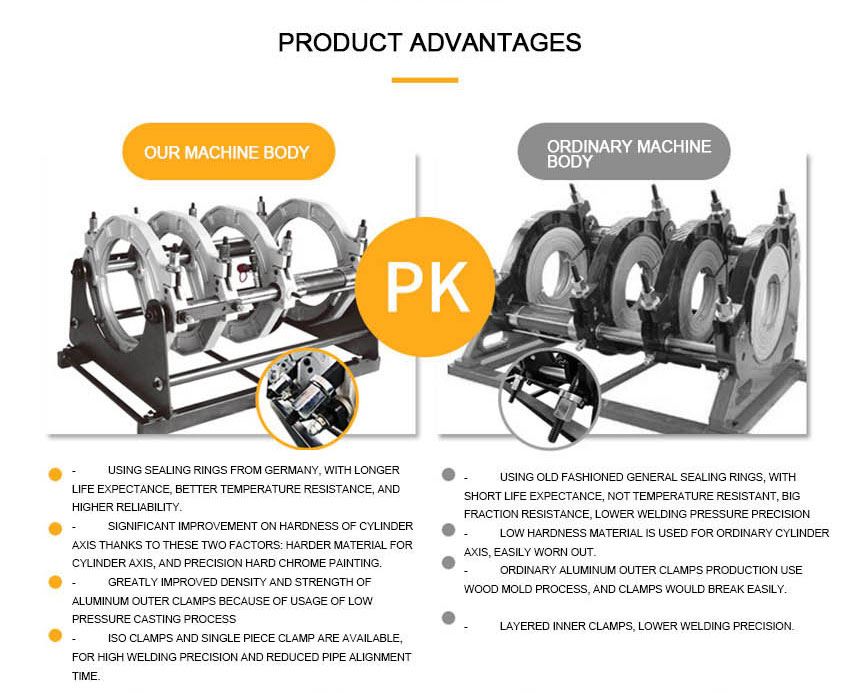

The machine body is of high qaulity aluminium steel which is light and rough.
Quality control
1. Checking raw material before production.
2. Checking parts one by one before assembling
3. Checking one by one during the production.
4. Random inspection before the delivery.
Company Overview
SAEMIN With over 30 years of expertise, SAEMIN has become a global leader in PE pipe fusion equipment manufacturing.
Our product range includes field butt fusion machines, multi-angle workshop welders, electrofusion units, specialty welding machines, and cutting systems, fully supporting PE, PP, PVDF, PPH and more.
Our solutions are widely applied in water, gas, oil, nuclear power, marine aquaculture, and shipbuilding industries.
Guided by SKC: Smart, Knowledgeable, Consistent – Every Weld, Every Time, we remain dedicated to delivering high-quality welding solutions worldwide.
Hot Tags: cnc butt welding machine 315mm, China, suppliers, manufacturers, factory, customized, wholesale, price, bulk, pricelist, quotation, for sale, in stock, PE Electrofusion Welding Machine, Electrofusion Processor, Universal Electrofusion Processor, Electrofusion Welding Machine
