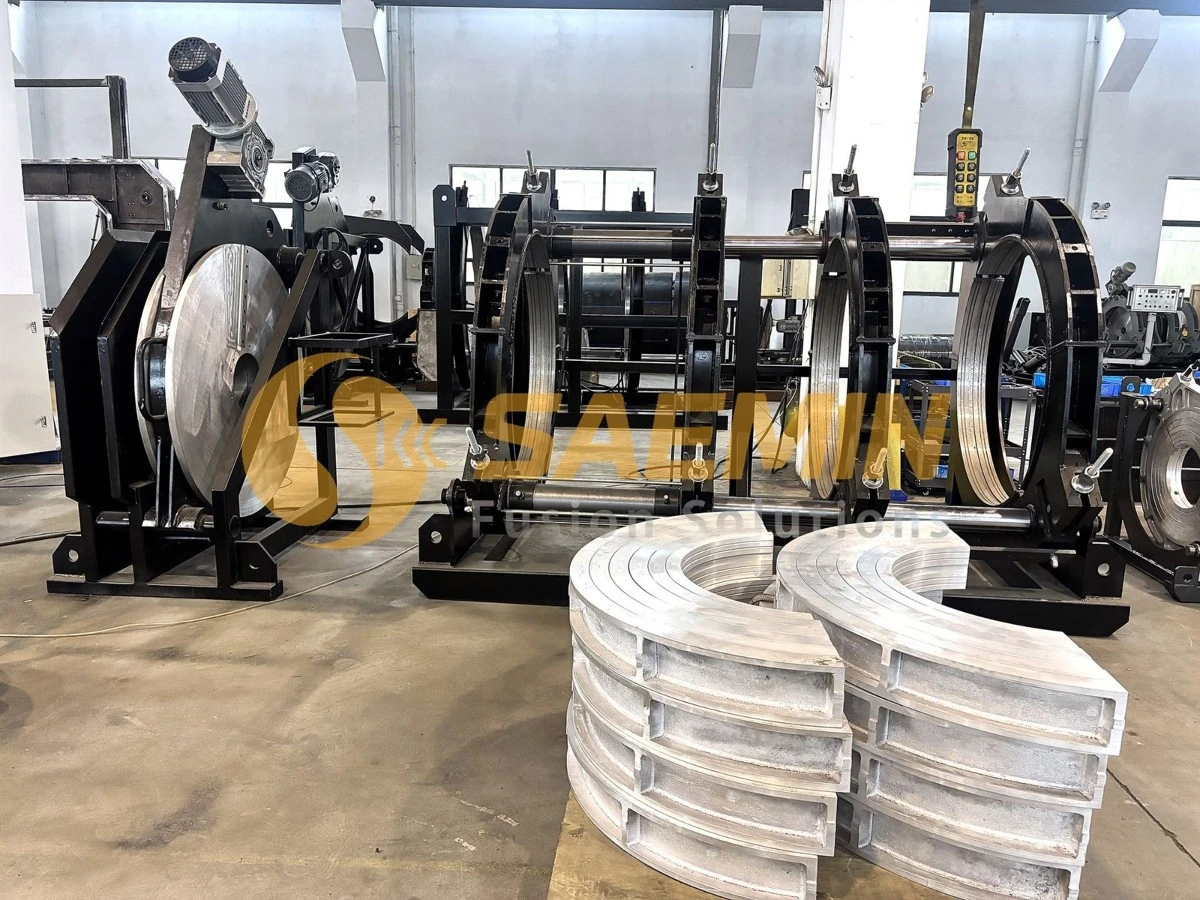

Butt Fusion Machine Maintenance Checklist: Keep Your HDPE Welder Running For More Than Ten Years
If you're working in the HDPE piping industry, you know a butt fusion machine is the backbone of every reliable joint. But even the sturdiest tools - like the ones we supply here at Saemin - don't run forever without proper upkeep. I've seen machines break down on site because operators skipped simple maintenance steps, and that's why we put together this practical guide to keep your butt welder in optimal condition. No complicated jargon, just actionable tips accumulated from years of supporting HDPE welding equipment users.
First off, let's start with the basics: why maintenance matters more than you think. A poorly maintained machine cannot deliver consistent weld quality, which brings joint leakage, rework and costly downtime on job sites. For small projects, it may only be a minor hassle. But for large infrastructure projects such as water transmission pipelines and underground gas pipelines, inconsistent welding can lead to expensive delays and potential safety risks. We have received feedback from customers whose machine failed mid-weld because they neglected hydraulic oil inspection, leaving them waiting weeks for replacement parts. Don't let this happen to you.
Daily Checks (Before Starting the Machine Each Day)
I always say: "If you would not drive a car without checking its oil, never start your fusion machine without pre-inspection."

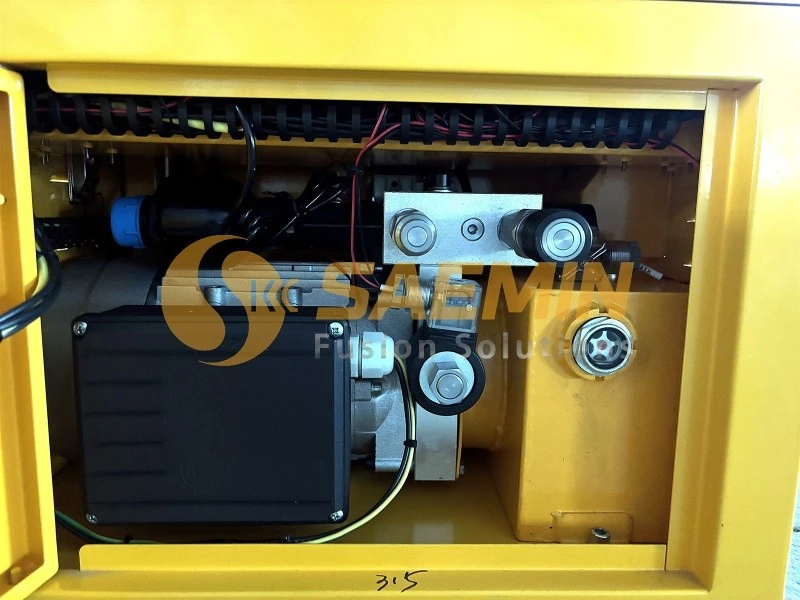

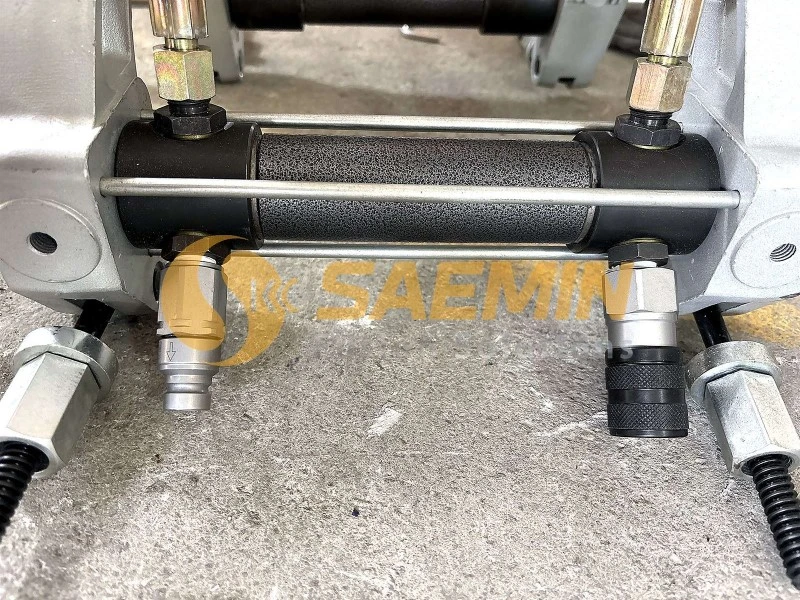

First, check the level of 46# hydraulic oil. Most machines are fitted with an oil sight glass on the oil tank; confirm the oil level stays between the "min" and "max" marks. Insufficient hydraulic oil results in insufficient clamping force and unstable welding pressure, which directly ruins weld quality. Next, inspect hoses and connectors for oil leakage. A tiny drip today will turn into a serious failure later.

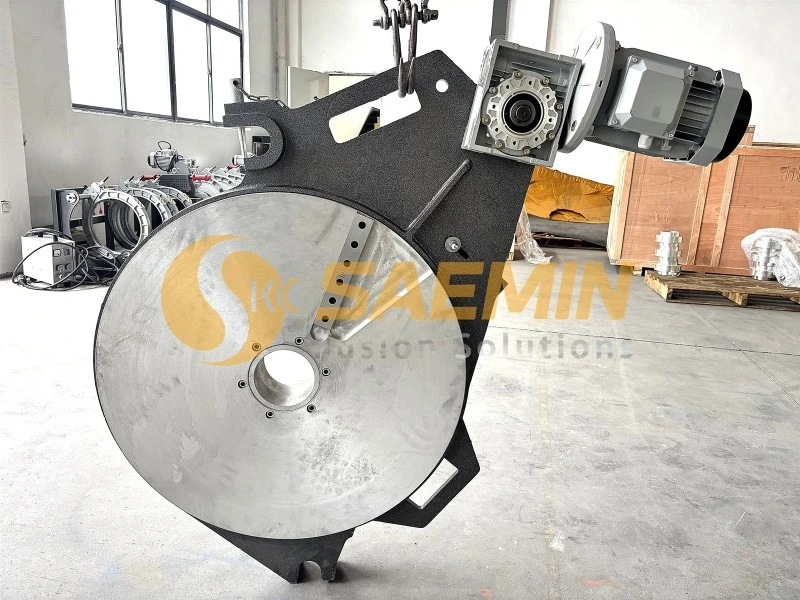

Then inspect the facer blade. The facer trims HDPE pipe ends flat for fusion, so the cutting edge must stay sharp. If you spot nicks or dull areas, replace the blade promptly. A dull facer will leave rough pipe end surfaces and create weak welded joints. You can find replacement blades in our butt fusion machine spare parts catalog.
Check the heating plate afterwards. Wipe it clean after each welding cycle. On a daily basis, verify whether the heating plate is deformed. A warped heating plate creates uneven heat distribution, causing one side of the pipe to over-melt while the other side melts inadequately.

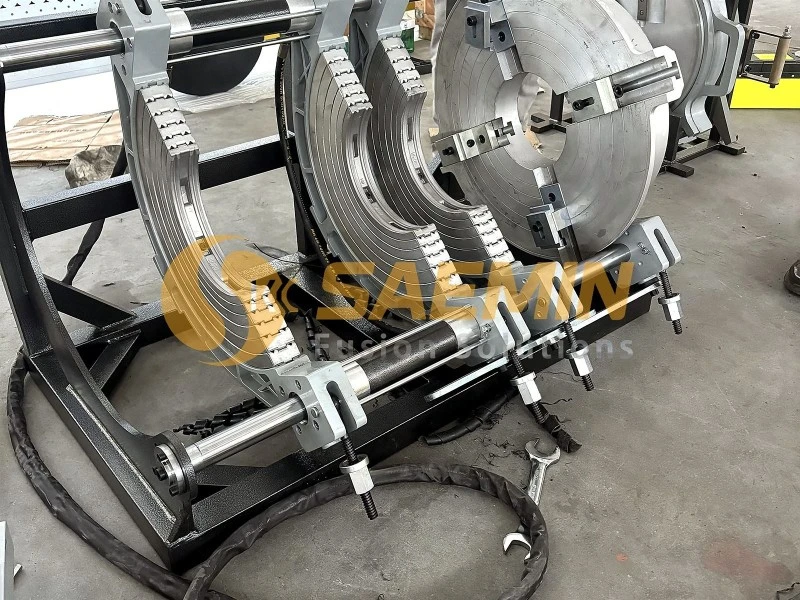

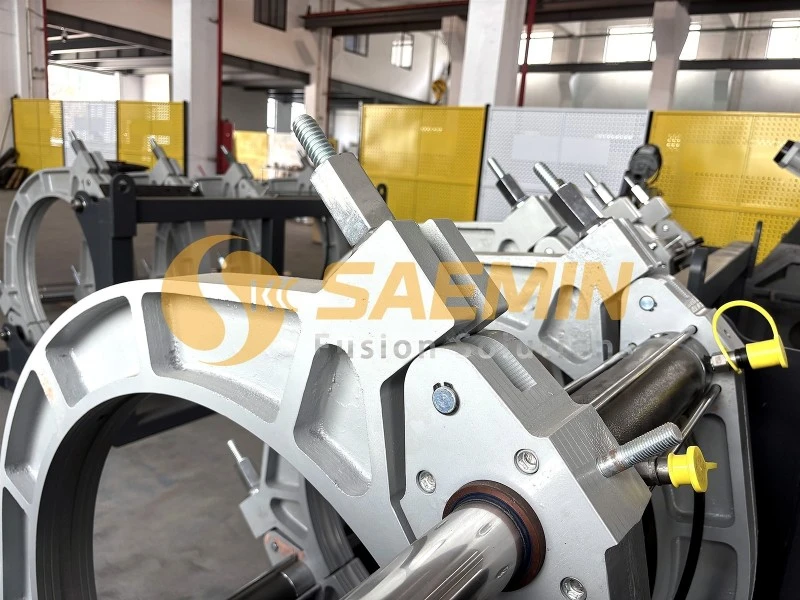

Finally, test the clamping unit. Open and close the clamps several times to ensure smooth movement without jamming. If the sliding rails feel stiff, apply a small amount of lubricating grease.
Weekly Maintenance Checks
Weekly maintenance goes deeper than daily routine. Do not postpone these tasks.
Start with all moving components: slide rails, hinges and bolt connections. Pipe shavings and dust build up over time and increase friction. Clean these parts with a wire brush or compressed air, then apply lubricating grease.

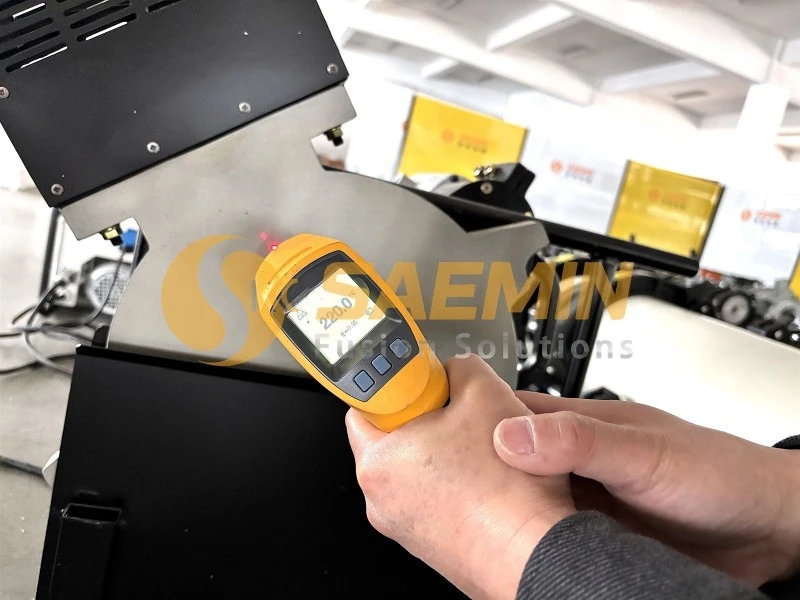

Next, verify the heating plate temperature. Use a portable thermometer to confirm the temperature reaches the standard range of 200–220°C for HDPE welding. If readings deviate greatly, calibrate the thermostat.
Also check machine alignment. Misaligned clamps mean pipe ends cannot be perfectly butted together, producing weak welds. Adjust the alignment guides as required. Read more in our HDPE pipe butt welding guide.
If you operate CNC models such as our 160 CNC Welding Machine, remember to install official software updates when available. Minor updates can prevent unexpected system faults.
Monthly Inspection & Service
These items change slowly but cannot be ignored.
First, drain and replace the 46# hydraulic oil. Old contaminated oil loses its viscosity and lubrication performance. Replace the oil every month or after 500 working cycles, whichever comes first. Please dispose of waste hydraulic oil in compliance with local environmental regulations; do not pour waste oil directly into drains.
Inspect hydraulic hoses for aging signs. Cracks, bulges or brittle rubber mean immediate replacement. A sudden hose burst during welding can halt the whole project.
Check electrical connections for electric machines (including our Automatic Butt Welding Machine 160mm). Ensure all wiring terminals are tight and insulation layers are intact. Frayed wires may trigger short circuits and safety hazards.
Test the pressure gauge for accuracy. An inaccurate gauge leads to wrong pressure judgment and defective welds; replace it once it fails calibration.
Annual Deep Maintenance & Calibration
Annual service is a thorough overhaul. You can carry it out if you are familiar with the equipment, or arrange a professional technician (we provide annual maintenance service for all our welding machines).
Disassemble the clamping assembly and clean every gap. Pipe shavings accumulate deeply inside after one year and may cause permanent damage.
Calibrate the whole machine, including temperature, pressure and alignment. Calibration ensures the machine runs in accordance with factory specifications, which is critical for large pipeline projects.
For automatic models like our Automatic Butt Fusion Machine SKC-B315A, calibration also covers servo motors and control systems. Automation faults are unacceptable when welding 315mm HDPE pipes.
Replace all worn components: facer blades, heating plates, hoses, sealing rings and other consumable parts. Proactive annual replacement costs far less than emergency repairs during project construction.
Maintenance Requirements Vary by Machine Size
Maintenance is not one-size-fits-all.
Smaller units such as our 160 CNC Welding Machine for pipes up to DN160 have simpler structures. Focus more on electronic control systems and facer blades.
Mid-range equipment like our 630 HDPE Butt Fusion Welding Machine features a larger hydraulic system. Pay extra attention to oil condition and hose leak inspection.
Heavy-duty machines such as our Automatic Butt Fusion Welding Machine 800-1600mm require mandatory annual calibration. These machines handle large-diameter HDPE pipes, and any welding error can scrap the whole joint. Automatic welding machines are equipped with multiple sensors; keep sensor surfaces clean and free from obstructions. Dust on sensors can trigger unexpected shutdowns.
Real Customer Cases: Maintenance Decides Machine Lifespan
I understand maintenance feels troublesome when you are working against tight construction schedules. But a 10-minute daily check can prevent hours of unexpected downtime.
We had one customer who skipped monthly hydraulic oil replacement. Eventually, the hydraulic pump burned out. Pump replacement cost him $1,200 and brought a three-day project delay. That loss could have been avoided with simple scheduled oil change.
We also have another customer who strictly follows the maintenance schedule: daily pre-checks, weekly lubrication and annual calibration. His butt fusion machine has been operating reliably for more than ten years without major breakdowns. That is the huge difference proper maintenance makes.
Practical Tips to Simplify Maintenance Work
Here are extra practical tips to simplify your maintenance work.
Keep a maintenance log for each machine. Record oil replacement time, facer blade replacement, temperature calibration and other service records. This helps you stay on track with service schedules.
Use genuine OEM spare parts. Avoid cheap generic facer blades from unknown suppliers. We supply original spare parts for all Saemin welding machines. Low-quality blades produce poor pipe trimming and ruin fusion joints.
Store the machine properly when not in use. Place it in dry covered storage and keep away from extreme weather. Rain and rust damage metal components. A simple tarp is not enough for long-term storage; an indoor shed or warehouse is recommended.
Common On-Site Maintenance Mistakes to Avoid
We also want to cover common maintenance mistakes we often see on site.
Many operators over-tighten clamps. It is easy to assume higher pressure equals better weld quality. But excessive squeezing pressure squeezes out excessive molten HDPE material and creates a weak joint. Always follow the manufacturer's recommended pressure parameters.

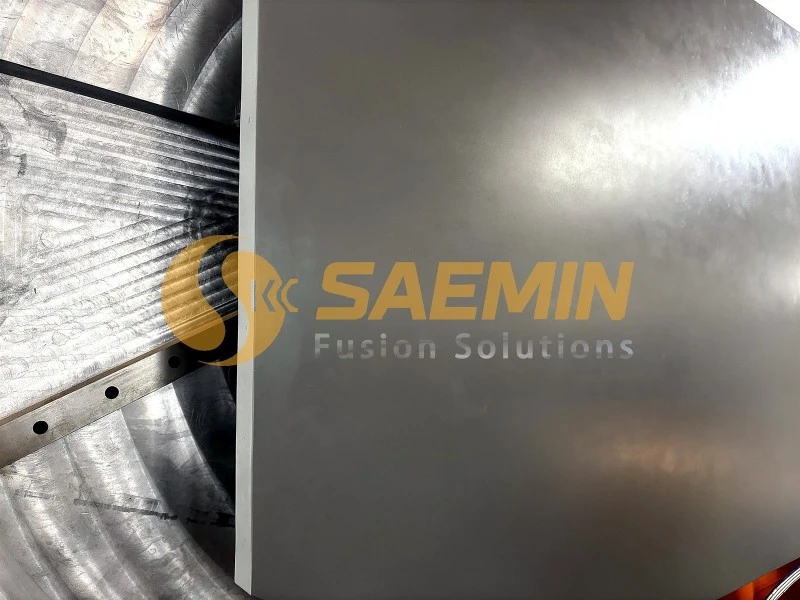

Another frequent mistake is incomplete heating plate cleaning. Residual HDPE buildup on the heating plate causes uneven heat transfer and poor fusion. We recommend a plastic scraper to remove residue while the plate is warm. Never scrape a cold heating plate, as hard scraping will scratch the non-stick coating. Do not use abrasive cleaners, which will permanently damage the coating and accelerate carbon accumulation.
Low-Maintenance HDPE Butt Fusion Machine Recommendations
If you are looking for low-maintenance welding equipment, we have reliable options.
Our Automatic Butt Welding Machine 160mm is compact with user-friendly controls, ideal for small and medium jobs.
The Automatic Butt Fusion Machine SKC-B315A is equipped with self-diagnosis functions, which send reminders when maintenance is due, so you will never miss a service point.
For heavy-duty pipeline projects, our Automatic Butt Fusion Welding Machine 800-1600mm comes with built-in hydraulic oil monitoring, removing guesswork from hydraulic system inspection.
Conclusion
Your HDPE butt fusion machine is a long-term investment. Regular maintenance is not only for qualified welds; it protects your equipment investment and keeps your pipeline projects on schedule. Skip maintenance, and you will face constant breakdown trouble. Stick to the maintenance routine, and your welder will serve you reliably for many years.
If you have questions about maintaining your specific butt fusion machine, or you are searching for suitable HDPE welding equipment, feel free to contact us. We have supported hundreds of contractors and pipeline crews globally, and we are ready to share technical guidance or help you select the right machine for your project.
