Descriptions:
Can used with SKC-MA1200 multi-angle fitting fusion machine or used aloneCut pipe in the workshop, in accordance with the angle and size of the set,to reduce the waste pipe, to fully enhance the efficiency of the production ofpipe fittings.
Can be used for cutting PE, insulation and corrugated pipe or other non-metallicmaterials.
Feature:
·Hydraulic control, frequency control, operate easy and convenient
· Adjustable cutting angle 0~67.5°.
·Specially designed saw blade, avoid cutting thick-walled pipe clip to saw bladeand extending saw blade life.
·Product complies with 98/37/EC and 73/23/EEC standards
Introduction
This PE pipe cutting machine can cut pipes in the workshop according to the preset angle and size to reduce the waste of pipes and fully improve the production efficiency of pipe fittings. It can be used to cut PE, insulation and corrugated pipe or other non-metallic materials.
Details

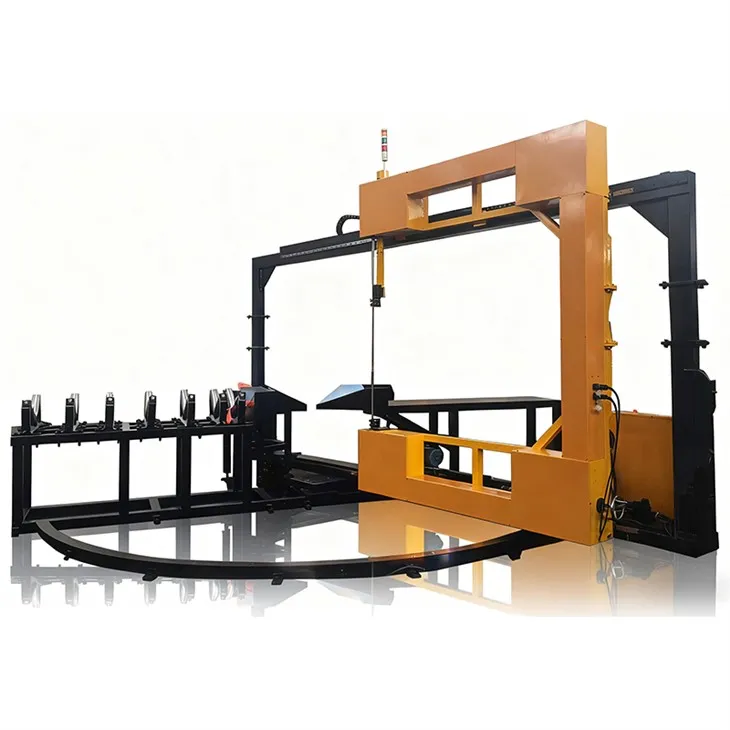

Model: SKC-MA1200B
Welding Type: Plastic Pipe Cutting Saw
Brand Name: SKC or OEM
Color: Yellow or customized
Parameters
|
Name |
PE pipe cutting machine |
|
Applied materials |
PE, PP ,PVDF,Corrugated pipe (only possible when used with optional parts), heat preservation (need to modify the configuration) |
|
Welded pipe diameter ranges |
≤DN1200mm |
|
The cutting Angle |
0-67.5° |
|
Working voltage |
AC380V±10 ％ ,50Hz (Special voltage can be customized) |
|
The total power |
6 Kw |
|
Band saw cutting speed |
0-250m/min |
|
Cutting feed speed |
Adjustable |
|
net weight, Kilo |
7200Kg |
Features
Hydraulic control, frequency control, easy and convenient operation.
Adjustable cutting angle 0-67.5 °.
Specially designed saw blade, avoid cutting thick walled pipes to extend saw blade life.
Product complies with 98/37 / EC and 73/23 / EEC standards.
Our Certificates
Company profile
Saemin company was founded in 1990, South Korea, and has always been committed to the R&D and production of PE and PP pipe welding machinery.
Today the company's products have been successfully used in more than 100 countries and regions of the world, and with its competitive price and durable quality, Saemin was appraised as ''the wise choice'' by the users.
Our service
1. Provide suggestions on technical design and solutions;
2. Designing and manufacturing of non-standard equipment;
3. Supply accessories upgrade machine at any time;
4. Tele-technical consulting and services;
5. Other special technical service based on client's requirements.
Why choose us ?
1.We are the leading manufacturer of butt fusion welding machines in jiangsu province , china .
2.Quality Control throughout the manufacturing processes.
3.General Inspection on machine before Packing.
4.Our hardware all passed ISO 9001.
5.Long service life of reliable butt fusion welding machine
FAQ
1. Q: How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems, we also send the spare parts, however it is charged. Any problem, you can call us directly.
2. Q: How can i trust your company?
A: With more than 20 years of professional design and production, we can give you suitable suggestions and the lowest price
1) Assessed by third party, national patents and CE, ISO for all equipment
2) For our machine, we make reliable butt fusion machines with excellent hydraulic system.
