How Accurate is a CNC Butt Fusion Machine?
In the realm of pipe welding, the CNC Butt Fusion Machine has emerged as a game-changer, revolutionizing the way pipes are joined. As a supplier of these advanced machines, I've witnessed firsthand the impact they have on various industries. One of the most frequently asked questions by our customers is: How accurate is a CNC Butt Fusion Machine? In this blog, we'll delve into the factors that determine the accuracy of these machines and explore the high-level precision they can achieve.
Understanding the Basics of CNC Butt Fusion Machines
CNC, or Computer Numerical Control, technology has been integrated into butt fusion machines to automate and enhance the welding process. A CNC Butt Fusion Machine is designed to join two pipes end-to-end (butt fusion) by heating the pipe ends and then pressing them together until they fuse. This process is crucial in industries such as water supply, gas distribution, and industrial piping systems, where leak-free and strong joints are essential.
Factors Affecting the Accuracy of CNC Butt Fusion Machines
1. Precision of the Heating Element

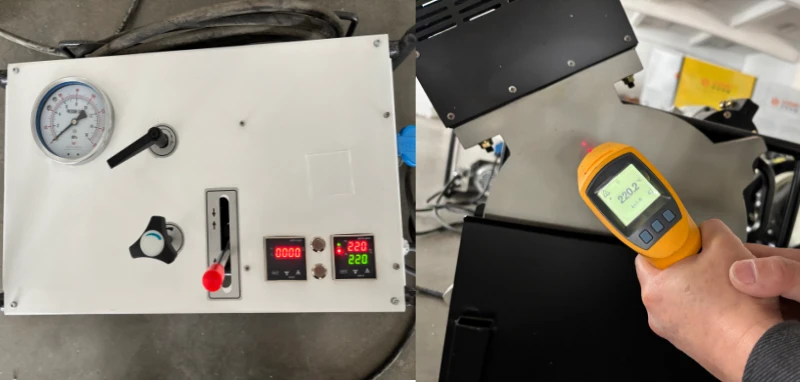

The heating element is a critical component of a CNC Butt Fusion Machine. It must be able to heat the pipe ends uniformly to the correct temperature. Our machines are equipped with high-quality heating elements that are precisely calibrated. For example, the 630 HDPE butt fusion welding machine uses advanced heating technology to maintain a consistent temperature across the entire surface of the pipe end. Temperature variations can lead to uneven melting of the pipe material, resulting in weak joints. With our machines, the temperature control accuracy can be maintained within a very narrow range, typically ± 2°C, ensuring that the pipe ends are heated to the optimal fusion temperature.
2. Alignment and Clamping Mechanisms

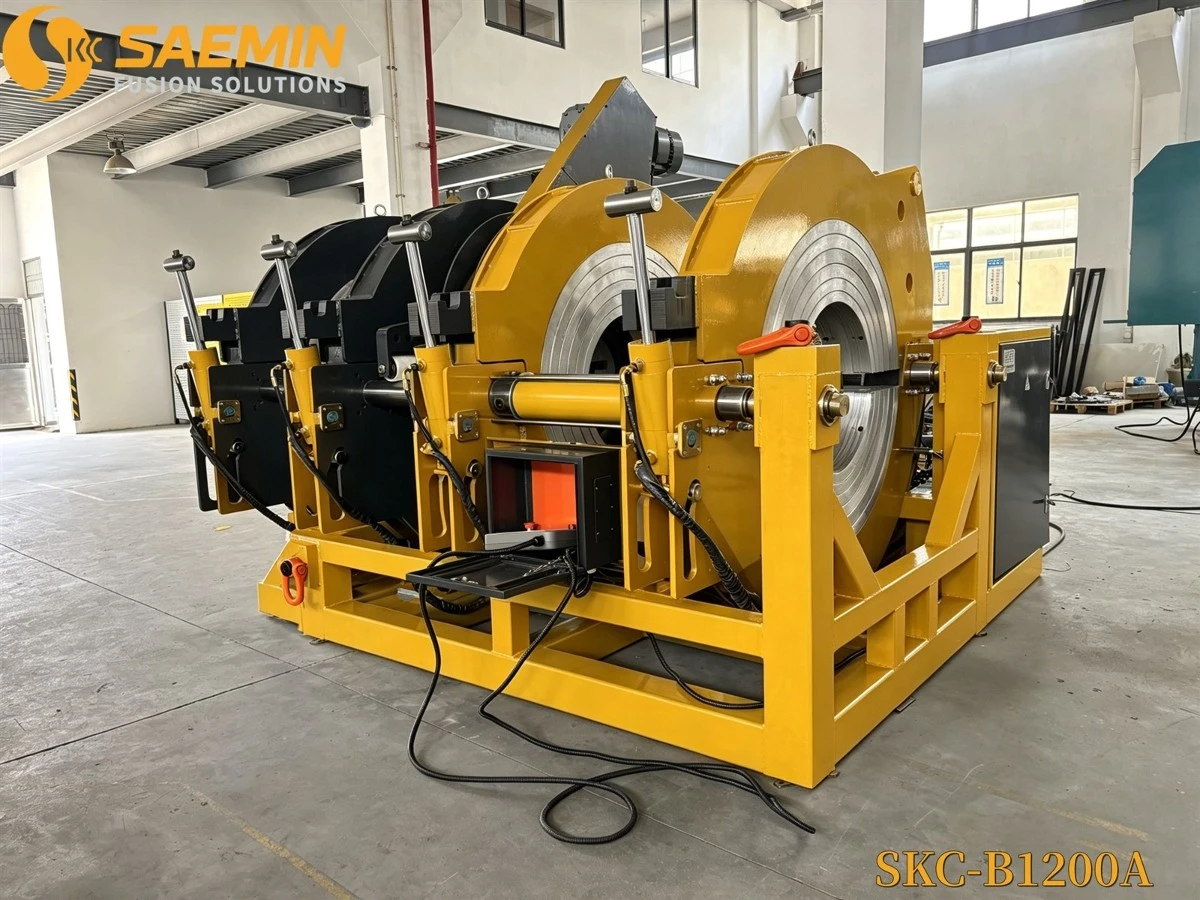

Accurate alignment of the two pipe ends is essential for a successful butt fusion. Our CNC Butt Fusion Machines are equipped with state-of-the-art alignment and clamping mechanisms. The clamping force is evenly distributed around the circumference of the pipes, preventing any misalignment during the heating and fusion process. For instance, the 1600mm automatic butt fusion welding machine features a highly precise alignment system that can detect minor misalignments and prompt operators for adjustment. This ensures that the two pipe ends are perfectly aligned, resulting in a seamless and strong joint.
3. Control System

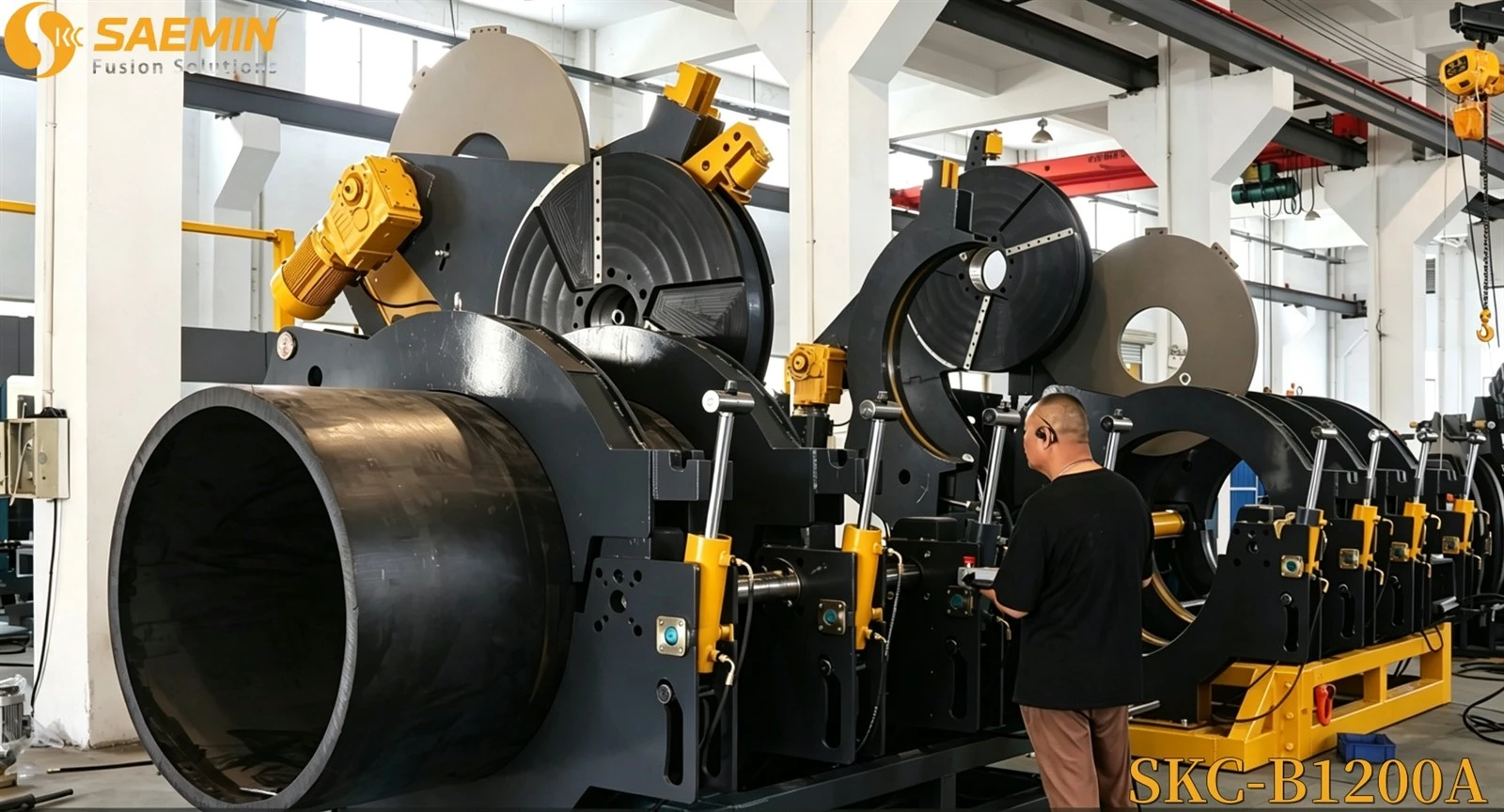

The CNC control system is the brain of the machine. It controls all aspects of the welding process, including heating time, pressure application, and cooling time. Our machines are programmed with advanced control algorithms that are based on extensive research and testing. The control system can adjust the welding parameters according to the type and diameter of the pipes being welded. For example, the full automatic welded pipe machine can automatically adjust the welding process for different pipe materials, such as HDPE, PP, and PVDF. This level of automation and precision control significantly reduces the risk of human error and ensures consistent and accurate welds.
4. Mechanical Structure and Build Quality
The mechanical structure of the CNC Butt Fusion Machine also plays a crucial role in its accuracy. Our machines are built with high-strength materials and precision-machined components. The frame of the machine is designed to be rigid and stable, which helps to maintain the alignment of the pipes during the welding process. The moving parts, such as the hydraulic cylinders and the carriage, are also manufactured with high precision to ensure smooth and accurate movement. The HDPE butt fusion machine is a prime example of a machine with a well-built mechanical structure. Its robust design ensures long-term reliability and accuracy in welding operations.
Measuring the Accuracy of CNC Butt Fusion Machines
1. Dimensional Accuracy
One of the key indicators of the accuracy of a CNC Butt Fusion Machine is the dimensional accuracy of the welded joint. After the welding process, the diameter and wall thickness of the joint should be within the specified tolerance range. Our machines are capable of achieving very high dimensional accuracy. For example, for pipes with a diameter of up to 630mm, the joint misalignment tolerance of the welded joint can be controlled within ± 0.5mm. This high level of accuracy is crucial for ensuring the proper fit and function of the pipes in the pipeline system.
2. Weld Strength and Quality
Another important measure of accuracy is the strength and quality of the weld. A well-welded joint should have high tensile properties and be free from defects such as cracks, porosity, and lack of fusion. Our CNC Butt Fusion Machines are designed to produce high-quality welds that meet or exceed international standards. The 160 CNC welding machine has been tested extensively to ensure that the welds it produces have high strength and excellent durability. Non-destructive testing methods, such as ultrasonic testing and X-ray testing, can be used to verify the quality of the welds.
Real-World Applications and Case Studies
In the water supply industry, our CNC Butt Fusion Machines have been used to install large-diameter HDPE pipes for water transmission. The high accuracy of the machines ensures that the joints are leak-free, which is essential for preventing water loss. In one project, a large-scale water pipeline was installed using our 1600mm automatic butt fusion welding machine. After the installation, the pipeline was pressure-tested, and no leaks were detected at the welded joints. This not only saved water but also reduced the maintenance cost of the pipeline system.
In the gas distribution industry, the accuracy of the CNC Butt Fusion Machines is even more critical. Gas pipelines require high-quality joints to prevent gas leakage, which can be a safety hazard. Our machines have been used in many gas pipeline projects around the world. The precise control of the welding process ensures that the joints have high strength and are resistant to gas permeation.
Conclusion
In conclusion, CNC Butt Fusion Machines are highly accurate pieces of equipment when it comes to pipe welding. Through advanced heating elements, precise alignment and clamping mechanisms, sophisticated control systems, and high-quality mechanical structures, these machines can achieve a very high level of accuracy in terms of dimensional control, weld strength, and quality. As a supplier of these machines, we are committed to continuously improving the accuracy and performance of our products.
If you are in the market for a CNC Butt Fusion Machine and are looking for a reliable and accurate solution for your pipe welding needs, we invite you to contact us for procurement and further discussions. We are more than happy to provide you with detailed product information, technical support, and customized solutions according to your specific requirements.
References
ISO 21307, DVS 2207, ASTM F2620: Standards for hot butt fusion welding of plastic pipes
